100KVA Single Phase Pad Mounted Residential Transformer 34.5KV To
240V 120V Dual Winding For Outdoor
A single-phase pad-mounted transformer, commonly referred to as a
residential transformer, is a compact, enclosed unit intended for
outdoor use. It features a sealed design, with its high-voltage and
low-voltage components located side by side in the cable entry
compartment. The cable entrance compartment is secured with a
padlock that complies with ANSI C57 standards. This residential
transformer is designed to be both tamper-resistant and
weather-resistant.
product structure
Main data
| Transformer Feed Type | Loop Feed |
| Phase | Single Phase |
| Capacity | 100 |
| Vector Group | II6 |
| Primary Voltage | 34500GrdY/19950 |
| Primary Voltage Class | 35 kV Class |
| Primary BIL | 150 KV |
| Secondary Voltage | 240/120V |
| Secondary Phasor | Dual Winding Single Phase |
| Secondary BIL | 30 KV |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Cooling Class | KNAN; Self-Cooled |
| Efficiency Standard(s) | DOE 2016 Standards, Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Efficiency | 99.00% |
| No Load Loss (in watts)* | +/- 270W |
| Load Loss (in watts)* | +/- 1,100W |

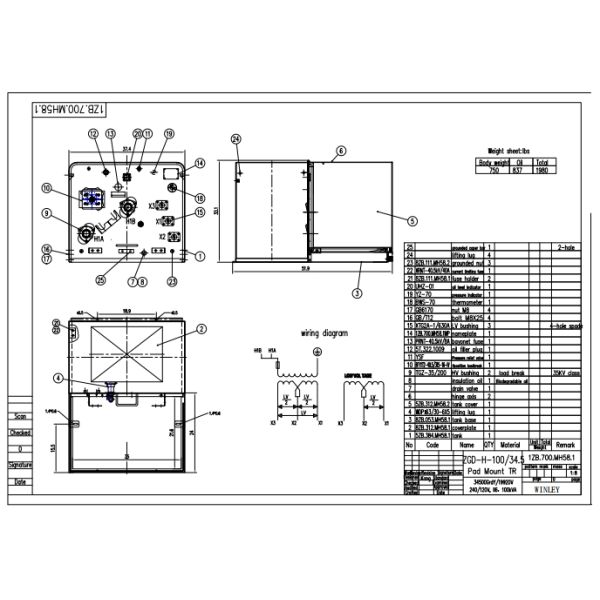

Product drawings
Standard Features
- drain plug and filler plug;
- load-break switches;
- provision for padlocking of load-break switches;
- stud-type or spade-type low-voltage bushings;
- load-break inserts complete with dust cap;
- 2 foundation clamps arranged;
- high-voltage taps;
- minimum impedance to limit the short-circuit current at the service
equipment as follows:
- oil level sight gauge located so as to ensure safe operation of the
load-break switches;
- load-break switch nameplate;
Specification
| Single phase Pad mounted Transformer Specification |
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) |
| 15 kVA | 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others | 50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106
|
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just
provide the photos of damaged accessory,then we will provide free
service. According to the number of products,we will provide easily
damaged accessories for free. we also can provide technical support
if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can
customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put
them into production. The above customized services must be
confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold
CE certificate. We have professional engineers. Workers are
strictly required to make products according to the drawings. Each
process has technical instructors.The QC supervisors will regularly
inspect the production. We will do products performance tests
during production, and comprehensive quality tests when the
products is completed.
