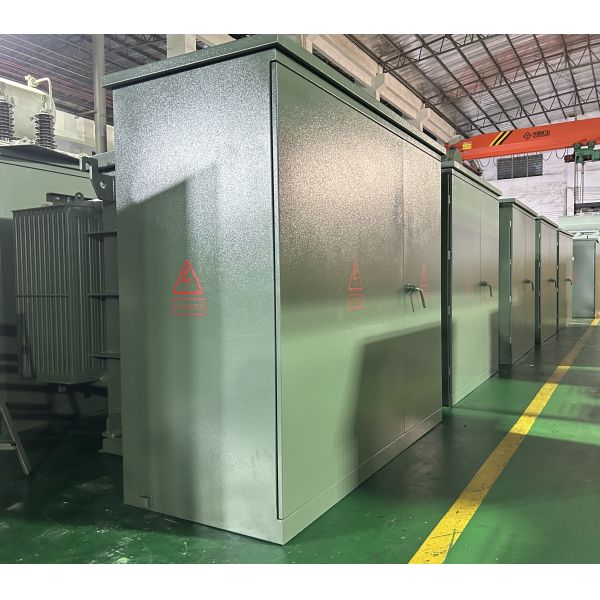

1500kva Three Phase Pad Mounted Transformer Oil Immersed Step Down 34500v To 208v 120v Dead Front Pad Mount Transformer

WINLEY's 1500kVA three-phase pad mounted transformer is a high-performance power distribution equipment designed for efficient and reliable electricity transmission.

Adopting a loop feed structure, it is suitable for both indoor and outdoor installation scenarios, meeting the power supply needs of various industrial, commercial and residential areas.

Its versatile multi-voltage adaptation, strict compliance with ANSI international standards, authoritative UL/cUL certification, and dedicated grounding porcelain bushing for enhanced safety—all of which together make it a top choice for modern power distribution systems that demand safety, compatibility, and reliability.

Main data

Technical drawings

Configuration​

• The transformer is equipped with a comprehensive set of accessories to ensure safe and stable operation, including:​
• 2-position break switch​
• Drain with sample valve in HV (High Voltage) side​
• Temperature gauge​
• Liquid level gauge​
• Pressure vacuum gauge​
• Pressure relief valve​
• Bayonet fuse & current limiting fuse on HV side​
• 36KV under oil arrester with ISO switch​
• Dedicated grounding terminal matching the H0 grounding porcelain bushing: Ensures tight connection with the bushing, reduces contact resistance, and guarantees continuous and reliable grounding performance.​

Outstanding Product Features​

One of the most significant advantages of this transformer is its 7-level off-circuit tapping range (36200V, 35360V, 34500V, 33640V, 33000V, 32175V, 31350V). This wide voltage range allows the equipment to seamlessly adapt to different grid voltage fluctuations and diverse application scenarios—whether it is for industrial parks with high-voltage demands, commercial centers requiring stable medium-voltage supply, or residential areas with standard low-voltage needs. The off-circuit tapping design ensures safe and convenient voltage adjustment without interrupting the overall power supply, greatly improving the flexibility and applicability of the transformer in complex power grid environments.​

Enhanced Safety via Grounding Porcelain Bushing​

• The dedicated H0 grounding porcelain bushing is a key safety feature, with multi-layer protection:​
• Superior Insulation: High-purity ceramic, ≥1000MΩ resistance (25℃), isolates terminals to avoid short-circuits.​
• Strong Adaptability: Anti-pollution coating, resists harsh elements, stable at -40℃~85℃/≥95% humidity.​
• Reliable Connection: Precision inner hole matches copper terminals, ≤0.01Ω resistance, quick fault current discharge.​
• Long Lifespan: Ceramic (wear/aging-resistant, UL94 V-0), ≥20 years service, cuts maintenance costs.

Specification

Production process

WINLEY is located in Xiamen, China. We are specialized in manufacturing all kinds of transformers, voltage stabilizers, voltage regulators, etc. The products are widely used in industrial machinery, new energy, power generation, power supply, coal, metallurgy, petroleum, chemical, construction, port, airport, railway transportation, urban infrastructure, and other areas.

With more than 17 years experience, WINLEY always adhere to the route of "Integrity makes brand,quality wins the market"! We have a professional R&D team, a quality control team, scientific production management system and comprehensive customer service system.

WINLEY holds ISO 9001:2015 quality management system certification, All products have approved by CE certification, we can also apply for UL(Authorized by partner), SASO, SONCAP, etc. according to customer requirements.

WINLEY products are sold to Europe, North & South America, Oceania, Asia and Africa, more than 100 countries and regions in the world are using WINLEY products. Products’ quality and technical service are recognized by all customers around the world, and we have cooperative distributors in some countries.

And we will continue to carry forward the integrity of compliance, scientific and technological innovation, win-win cooperation spirit, provide quality products and comprehensive service to all partners, and work hard for the development of the world’s green electrical power.
