75kva Oil Single Phase overhead Pole Mounted Distribution
Transformer 4160GrdY/2400 To 120/240V
The transformer is cylinder sealing structure.Each one is fixed
with grounding devices,hooks,supporting lugs which conforms to ANSI
standard,and one or two high voltage bushing on the cover,low
voltage bushing on the wall of the tank and eyebolt, connecting
terminals.The tap changer should be adjusted basing on the
instruction after the power off.
Main data
| Transformer Type | Overhead Distribution Transformer, Conventional Type |
| Phase | Single Phase |
| Capacity | 75 KVA |
| Primary Voltage | 4160GrdY/2400 |
| Secondary Voltage | 120/240V (L-N-L) |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | ONAN |
| Impedance | 2.75% Typical |
| Efficiency Standard(s) | DOE 2016 Standards,CSA Standards ,ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Ambient Operating Temperature Range | -40°C to +40°C (-50°F to +104°F) |
| Sound Level | 51 dBA |
| Core Material | Grain Oriented Steel |
| Tank Material | Coated Steel |
| Dimensions* | 26.75''-W x 28.30''-D x 47.18''-H |
| Total Weight (Liquid Filled)* | 873 lb |
| Efficiency | 99.05% |
| No Load Loss (in watts) | +/- 240W |
| Full Load Loss (in watts) | +/- 840W |

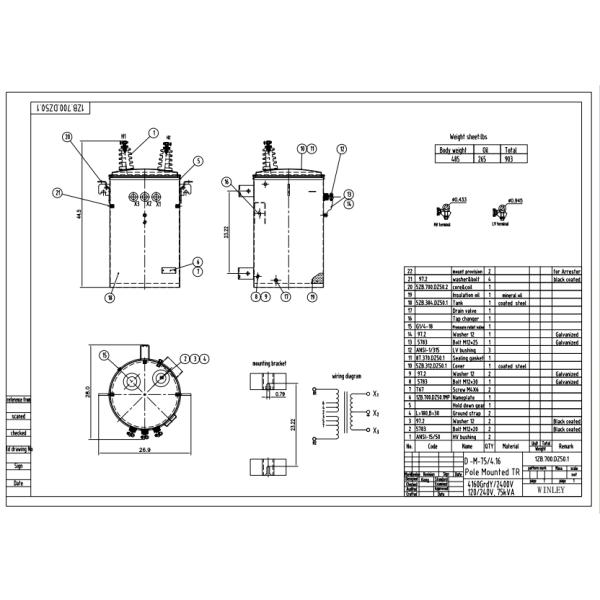

Product drawings
Standard Feature
■Quality System ISO 9001 certified.
■Paint system meeting or exceeding the performance of the
IEEEC57.12.28 Standard.
■Lifting lugs meeting all of the requirements of the CSA C2.1-06
and CSA C2.2-06 Standard
■Computer aided design for mechanical & electrical calculations
(C.A.D.).
■Core and coils designed for an optimum Total Ownership Cost (TOC).
■Provision for surge arrester bracket,bracket available as an
option.
■"Low-high-low"windings for increased short circuit
stren-gth,efficiency and thermal strength
■Cover or sidewall mounted high voltage bushing(s)as required.
■Wound core with step-lap joints for increased efficiency and lower
noise levels.
■Dual voltage designed to meet BIL and short circuit requirements
on both connections.
■Automatic self-resealing pressure relief valve.
■Low voltage spade or clamp type(basket)terminals as required.
■Multiple cover clamps to ensure proper sealing and to minimize
water retention on the cover edge.
Specifications
| 10kva-333kva Single-phase oil immersed transformer |
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) |
| 10 | 4160
7200
12000
12470
13200
13800
19920
24940
34500 | 110
220
230
400
480 | II0,II6 | IEEE/ANSI/ DOE | 1.8-4% | 98.7 |
| 15 | 98.82 |
| 25 | 98.95 |
| 37.5 | 99.05 |
| 50 | 99.11 |
| 75 | 99.19 |
| 100 | 99.25 |
| 167 | 99.33 |
| 250 | 99.39 |
| 333 | 99.43 |

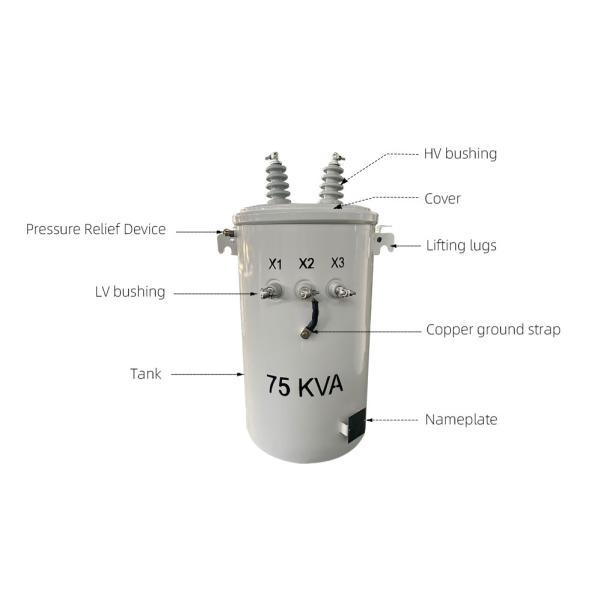

Accessories
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just
provide the photos of damaged accessory,then we will provide free
service. According to the number of products,we will provide easily
damaged accessories for free. we also can provide technical support
if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can
customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put
them into production. The above customized services must be
confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold
CE certificate. We have professional engineers. Workers are
strictly required to make products according to the drawings. Each
process has technical instructors.The QC supervisors will regularly
inspect the production. We will do products performance tests
during production, and comprehensive quality tests when the
products is completed.
