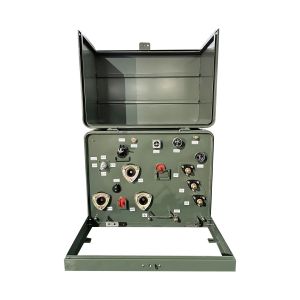

Pad Mounted Transformer Oil Immersed Single Phase 167kva
13800grdy/7968 To 240/120v
The single-phase pad mounted transformers produced by WINLEY
Electric fully comply with and exceed ANSI, DOE, IEEE and CSA
standards, with a rated capacity range of 10KVA-250KVA and a
primary voltage of up to 34.5kV. We independently produce key
components such as oil tanks and cores, with a monthly delivery
capacity of more than 600 units, and can deliver quickly with 30
day.
Factory product photos
product structure
Main data
| Transformer Type | Pad Mounted, Compartmental-Type |
| Phase | Single Phase |
| Capacity | 167 |
| Primary Voltage | 13800GrdY/7968 |
| Secondary Voltage | 240/120V (L-N-L) |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Cooling Class | ONAN; Self-Cooled |
| Load Break Switch | 4-Position Load Break Switch |
| Efficiency | Meet DOE 2016 Standard |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 55 dBA |
| Elevation (Altitude) | 3300ft (1000 meters) Above Sea Level |
| Tank Material | Coated Steel |
| Dimensions* | 41-L x 43.5-D x 31.75-H |
| Weight* | 1,950 lb |
| Efficiency | 99.10% |
| No Load Loss (in watts)* | +/- 455W |
| Load Loss (in watts)* | +/- 1833W |
| Total Load Loss (in watts)* | +/- 2288W |
Drawing
Specification
| 25kva-500kva single phase pad mounted transformer |
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) |
| 25 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 | 110 220 230 400 480 | II0,II6 | IEEE/ANSI/ DOE | 1.0-4.5% | 98.95 |
| 37.5 | 99.05 |
| 50 | 99.11 |
| 75 | 99.19 |
| 100 | 99.25 |
| 167 | 99.33 |
| 250 | 99.39 |
| 333 | 99.43 |
| 500 | 99.49 |
Accessories
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just
provide the photos of damaged accessory,then we will provide free
service. According to the number of products,we will provide easily
damaged accessories for free. we also can provide technical support
if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can
customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put
them into production. The above customized services must be
confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold
CE certificate. We have professional engineers. Workers are
strictly required to make products according to the drawings. Each
process has technical instructors.The QC supervisors will regularly
inspect the production. We will do products performance tests
during production, and comprehensive quality tests when the
products is completed.
